KPS 63 mm 2″

Primary Containment Fuel Piping

Select Below

The KPS Petrol Pipe System™ is the most advanced and installer friendly piping system available for fuel and many other liquid and chemical applications. The KPS product range covers all piping needs.

Features And Benefits

  • Engineered for easy installation: reducing cost and build time
  • Compact fittings, elbows and tees
  • Conductive (electrostatically safe) or non-conductive
  • Suitable for petrol, diesel, Jet-A1 and ethanol blends (conductive).
    For other uses, get in touch
  • Zero permeation: liquid/water tight
  • Corrosion-free
  • Lightweight
  • Full technical support
  • Installer training program

Approvals

  • EN 14125
  • EN 13163-1
  • ATEX 137 (directive 1999/92/EC)

Pipe

Conductive petrol pipes with permeation barrier

Article Number Description Remark Ø (mm) Length (m)
KP 63EC6 Pipe 63 mm, conductive Pipe 63 mm, 5.8 m lengths. 48 units / package 63 278 m
KP 63EC50 Pipe 63 mm, conductive Pipe 63 mm, 50 m coil 63 50 m
KP 63EC85 Pipe 63 mm, conductive Pipe 63 mm, 85 m coil 63 85 m

Approved according to EN 14125, German standard, EN 13463-1, IP2 and ATEX 137 (directive 1999/92/EC).

Conductive Connectors For Pipe Joints

Article Number Description Remark Ø (mm) Pack Size
KP CC-63 Conductor 63 mm, conductive 63 45

Connectors used to bridge joints thereby maintaining conductivity throughout the pipe system. Patented design.

Welding Sockets

Conductive

Article Number Description Remark Ø (mm) Pack Size
KP 2-63 Welding socket 63 mm 63 45
KP 2-63R Welding socket 63 mm,
no pipe stop
Slides over the pipe 63 1

Bends, Elbows and Tees

Conductive formed bends and elbows with permeation barrier

Article Number Description Remark Ø (mm) Pack Size
KP 3-63FC Bend 90° 63 mm, conductive 63 8
KP 3-63FCL Bend 90° 63 mm, conductive,
long type
50 cm extra length 63 1
KP 4-63FC Bend 45° 63 mm, conductive 63 20

Conductive Weldable Elbows

Article Number Description Remark Ø (mm) Pack Size
KP 23-63EC Elbow 90° 63 mm, conductive Weldable 63 10
KP 24-63EC Elbow 45° 63 mm, conductive Weldable 63 12

Conductive Tee With Permeation Barrier

Article Number Description Remark Ø (mm) Pack Size
KP 28-63EC Tee 63 mm, conductive Weldable 63 10

Entry Seals

Conductive

Article Number Description Remark Ø (mm) Pack Size

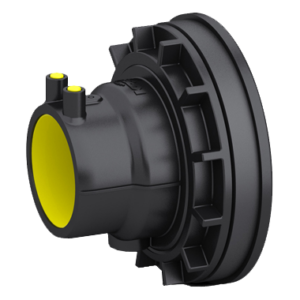

KP TM75/54 Entry seal, pipe 75/63/54 mm Threaded, no bolts necessary.
Use hole saw Ø 114 mm.
75/63/54 8

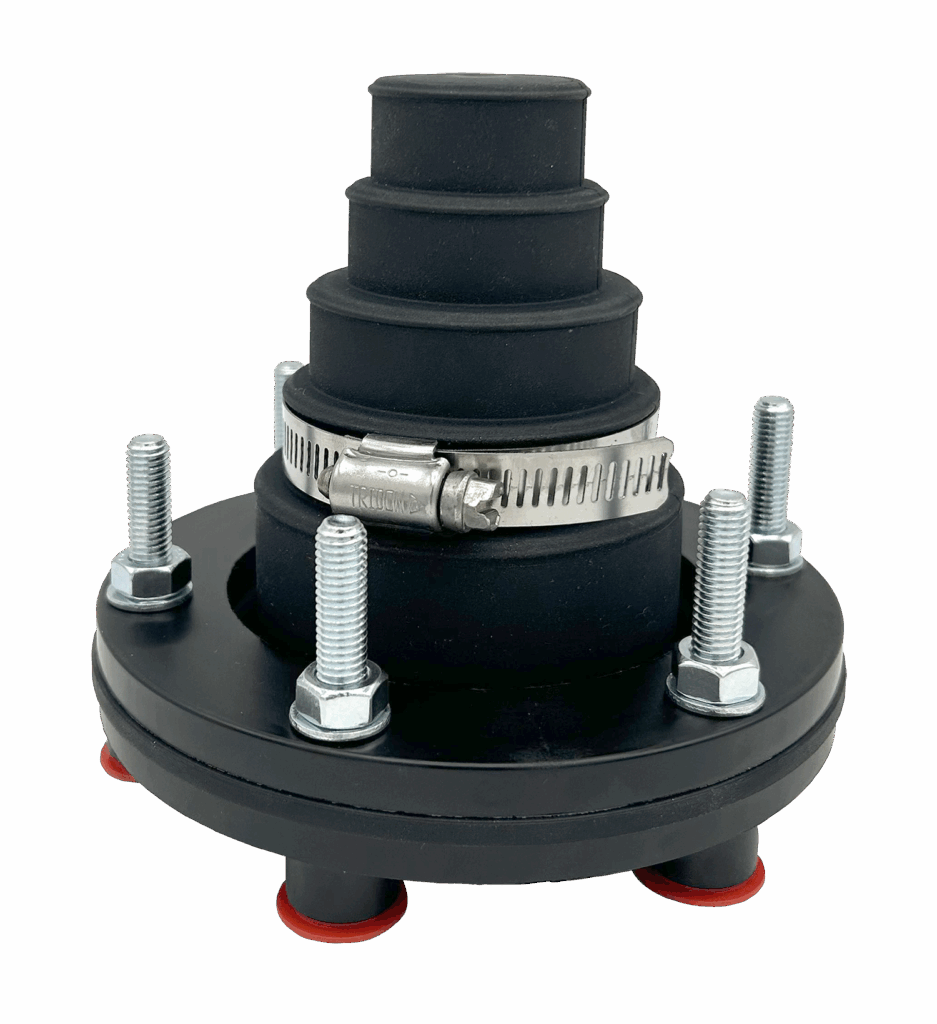

KP M75/54 Entry seal, pipe 75 to 54 mm Use hole saw Ø 92 mm. 75/63/54 15
KP TM63-B Entry seal, pipe 63 mm Use hole saw Ø 114 mm. 63 8

Blind Entry Seal

Article Number Description Remark Ø (mm) Pack Size
KP TM75/54B Blind entry seal, pipe
75/63/54 mm
Threaded, no bolts necessary.
Use hole saw Ø 114 mm.
75/63/54 10

Transition Fittings

Female Transition Fittings, Conductive, Plastic To Steel

Article Number Description Remark Ø (mm) Pack Size
KP C17-63F Transition fitting 63 mm, steel 2" BSPT female / Rc 2" 63 12
KP C17-63/54F Transition fitting 63/54 mm,
reduced, steel
1½" BSPT female / Rc 1½" 63/54 12
KP C17-63FL Transition fitting 50 cm stub,
63 mm, steel
2" BSPT female / Rc 2" 63 10
KP C17-63/54FL Transition fitting 50 cm stub,
63/54 mm, reduced, steel
1½" BSPT female / Rc 1½" 63/54 10

Male Transition Fittings, Conductive, Plastic To Steel

Article Number Description Remark Ø (mm) Pack Size
KP C17-63M Transition fitting 63 mm, steel 2" BSPT male / R 2" 63 12
KP C17-63ML Transition fitting 50 cm stub,
63 mm, steel
2" BSPT male / R 2" 63 10
KP C17-63/54ML Transition fitting 50 cm stub,
63/54 mm, reduced, steel
1½" BSPT male / R 1½" 63/54 10

Female Transition Flange Fittings, With Spacer, Conductive, Plastic To Steel

Article Number Description Remark Ø (mm) Pack Size
KP C16-63F Transition fitting 63 mm, steel 2" BSPT female / Rc 2" 63 12
KP C16-63/54F Transition fitting 63/54 mm,
reduced, steel
1½" BSPT female / Rc 1½" steel 63/54 12
KP C16-63FL Transition fitting 50 cm stub 63 mm, steel 2" BSPT female / Rc 2" 63 10

Male Transition Flange Fittings, With Spacer, Conductive, Plastic To Steel

Article Number Description Remark Ø (mm) Pack Size
KP C16-63M Transition fitting 63 mm, steel 2" BSPT male / R 2" 63 12
KP C16-63/54M Transition fitting 63/54 mm, reduced, steel 1½" BSPT male / R 1½" 63/54 12
KP C16-63ML Transition fitting 50 cm stub, 63 mm, steel 2" BSPT male / R 2" 63 10

Conductive Stub Flanges, DIN Flanges And Gaskets For Pipe Termination

Article Number Description Remark Ø (mm) Pack Size
KP C20-63 Stub flange, DIN flange and gasket 63 mm, steel 63 4
KP C20-63L Stub flange, 50 cm stub, DIN flange and gasket 63 mm, steel 63 1
KP W6-63 Separate threaded DIN flange 63 mm, steel BSPT 2" female / Rc 2" 63 1

Compression Transition Fittings, Conductive, Plastic To Steel

Article Number Description Remark Ø (mm) Pack Size
KP C14-63M Transition fitting 63 mm, brass 2" BSPT male / R 2" 63 1
KP C14-63MS Transition fitting 63 mm, stainless steel 2" BSPT male / R 2"
Extended delivery time may apply.
63 1
KP C14-63/54M Transition fitting 63/54 mm, reduced, brass 1½" BSPT male / R 1½" 63 1
KP C14-63/25M Transition fitting 63/25 mm, reduced, brass 1" BSPT male / R 1" 63 1

Flange Fittings

Article Number Description Remark Ø (mm) Pack Size
KP F16-63MM Flange fitting 2” BSPT male-male / R-R 2” 8
KP F16-63MF Flange fitting 2” BSPT male-female / R-Rc 2” 8
KP F16-63FF Flange fitting 2” BSPT female-female /
Rc-Rc 2”
8

Flexible Connectors and Valves

Conductive flexible connectors, union coupling

Article Number Description Remark Length (mm)
KP T50-4S Flex hose 400 mm, stainless BSPT 2" male x 2" female union R 2" x Rc 2" union 400
KP T50-6S Flex hose 600 mm, stainless BSPT 2" male x 2" female union R 2" x Rc 2" union 600
KP T50-8S Flex hose 800 mm, stainless BSPT 2" male x 2" female union R 2" x Rc 2" union 800
KP T50-12S Flex hose 1200 mm, stainless BSPT 2" male x 2" female union R 2" x Rc 2" union 1200

Conductive flexible connectors, hexagon nipple type

Article Number Description Remark Length (mm)
KP TN50-4S Flex hose 400 mm, stainless BSPT 2" male x male / R 2" x R 2" 400
KP TN50-6S Flex hose 600 mm, stainless BSPT 2" male x male / R 2" x R 2" 600

Valves

Article Number Description Remark Pack Size
KP 14-050 Ball valve 2" BSPT 2" female / Rc 2" 1
KP 15-050 Shut-off valve 2" BSPT 2" female / Rc 2" 1
KP 15-050HL Shut-off valve handle To open and close shut-off valve from surface level 1

AdBlue Fittings

Conductive

Article Number Description Remark Ø (mm) Pack Size
KP C14-63MS Transition fitting 63 mm, stainless steel 2" BSPT male / R 2" 63 1

Extended delivery time may apply on stainless steel fittings.
